Without manual operation, it can focus automatically
Integrated cast aluminum beam
Compared with the steel beam, the cast aluminum beam greatly reduces the weight, load of servo motor and inertia. At the same time, it can save the power cost, it has a very high running speed. The integrated cast aluminum beam has high precision, high speed and high efficiency. The light beam can ensure the rapid operation of the equipment, improve the processing efficiency and ensure the processing quality.
Pipe welding bed
The internal structure of the lathe bed is welded by several rectangular tubes, and the reinforced rectangular tube is set inside the bed to increase the strength and tensile strength of the bed, increase the tensile strength and stability of the guide rail surface, and effectively avoid the deformation of the bed. The internal stress of the lathe bed can be completely released after aging treatment, and its internal stress can be almost ignored, so that the accuracy of the machine tool can be maintained for a long time
 |
PRODUCTS VIDEO

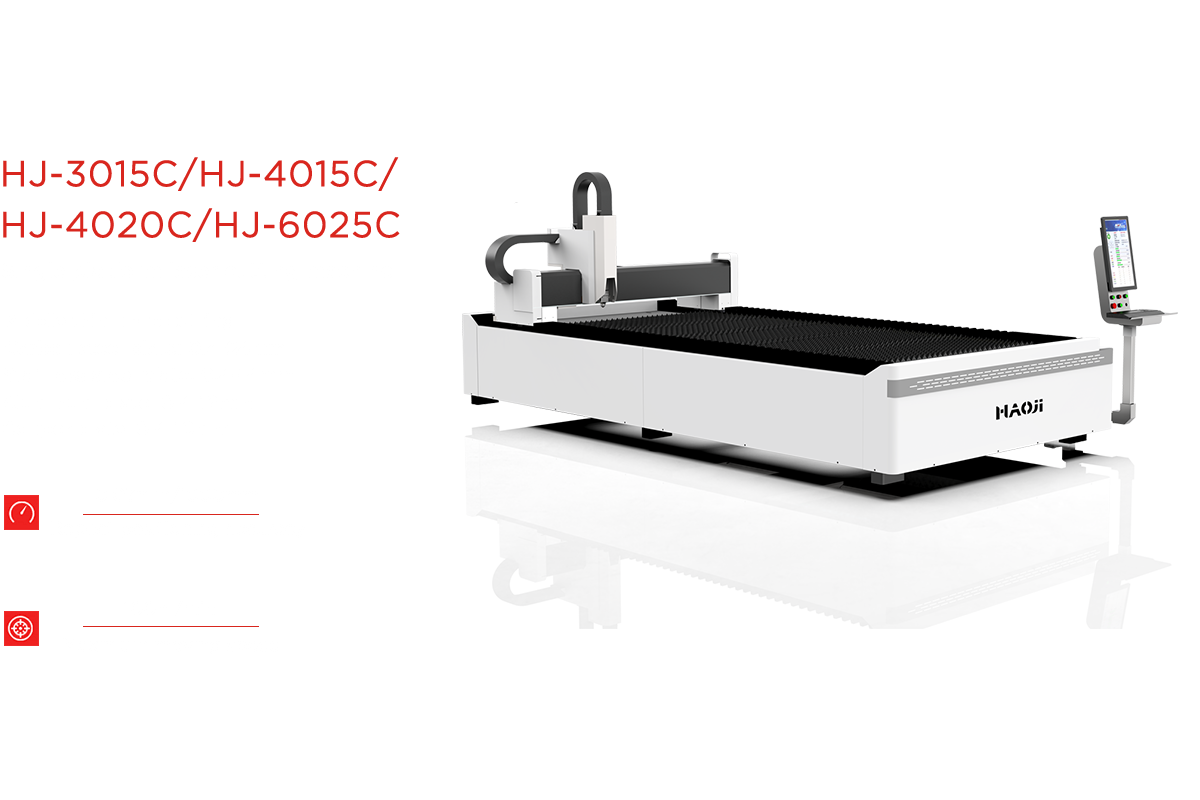

The single platform laser cutting machine is suitable for 1000w-6000w laser cutting. The cutting thickness is related to the laser power. Carbon steel plate：0.5-22mm Stainless steel plate：0.5-12mm Aluminum plate：0.5-12mmTechnical Parameters
| MODEL | 3015C | 4015C | 4020C / 6025C |
| CUTTING AREA | 3000*1500MM | 4000*1500MM | 4000*2000MM / 6000*2500MM |
| TRANSMISSION SYSTEM | Gantry double drive structure |
| MAXIMUM MOVING SPEED | 100m/min |
| REPEAT POSITIONING ACCURACY | ±0.03mm | ||
Cutting samples
It can be used for 0.5 – 25mm carbon steel plate, 0.5-16mm stainless steel plate,galvanized sheet, cold rolled sheet and electrolytic plate, 05-16mm aluminum alloy plate, 0.5-10mm brass and red copper and other metal materials.
Download Zone
More downloadsApplication industry
Kitchen appliances,sheet metal case cabinets,machinery equipment,electrical equipment,lighting hardware,advertising signs,auto parts,display equipment,various metal products,sheet metal cutting and processing industries.
